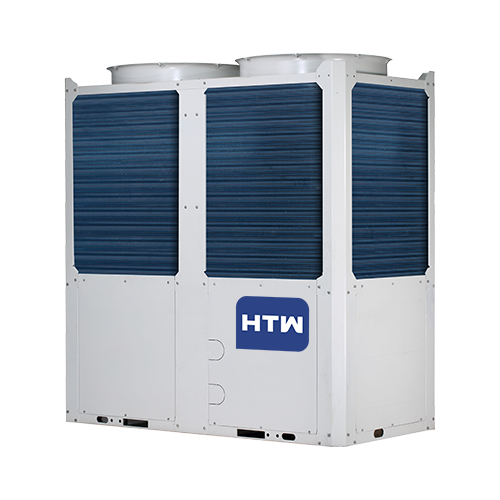

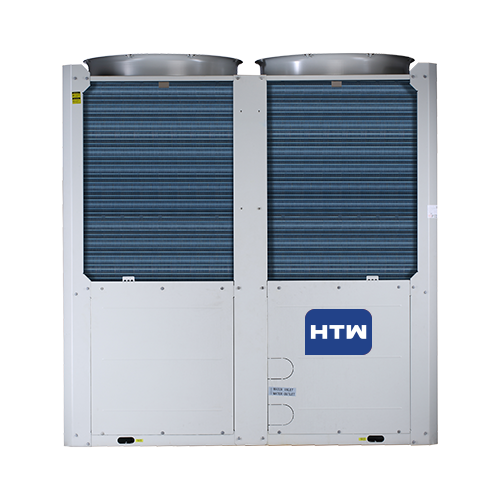

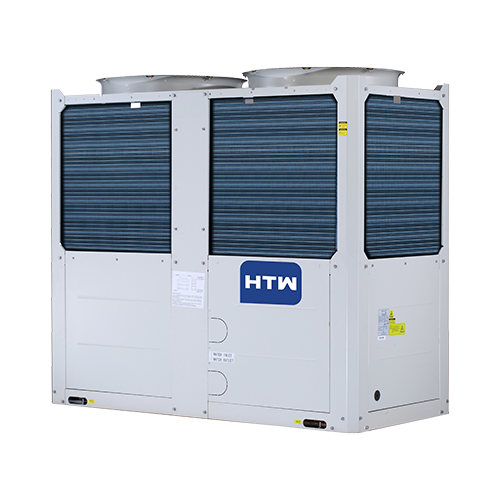

MODULAR HIGH TEMPERATURE CHILLER
Redefines industrial air conditioning.
New High Temperature Modular Chiller with the capacity to reach up to 65ºC discharge using R32 gas, not only guarantees exceptional performance, but is also environmentally friendly.
Main features:
- Can reach a supply temperature of 65ºC.
- Ecological gas R32.
- Possibility of connecting up to 16 units in cascade.
- Possibility to connect up to 16 controls in series/parallel to obtain a single modbus output.
- Units with or without hydraulic unit
- DHW temperature up to 62ºC without support resistance.
- Night mode
- Automatic blowing to avoid snow accumulation
Available power ratings: 65 kW - 75 kW - 110 kW - 140 kW (without hydraulic unit) / 65 kW - 75 kW (with hydraulic unit)
Note: 110 and 140 kW units have an extra charge of 4 kg of R32 gas to be done by the installer.
Refrigerant R32
R32 gas has a very low Atmospheric Warming Potential (AWP) index, high efficiency and cooling power.
Inverter technology
By working the compressor continuously, energy savings of up to 50% are achieved compared to conventional equipment.
Cascade installation
Cascade installation
Runway Modbus
Compatible with Modbus protocols.
| MODEL | HTW- CHS65MZ-T3HTA | HTW- CHS75MZ-T3HTA | HTW- CHS110MZ-T3HTA | HTW- CHS140MZ-T3HTA | HTW- CHS65MG-T3HTA | HTW- CHS75MG-T3HTA | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EAN CODE | 8435483859685 | 8435483859661 | 8435483859647 | 8435483859630 | 8435483859678 | 8435483859654 | ||||||||
| Power supply: 380-415V (3 Phase ~ 50Hz) | ||||||||||||||
| PERFORMANCE | ||||||||||||||
| Cooling capacity (A35W7) | Capacity (kW) | 57,00 | 70,00 | 100,00 | 130,00 | 56,68 | 69,29 | |||||||
| Input (kW) | 19,00 | 26,80 | 32,78 | 50,00 | 19,79 | 28,26 | ||||||||
| EER (W/W) | 3,00 | 2,61 | 3,05 | 2,60 | 2,86 | 2,45 | ||||||||
| Cooling capacity (A35W18) | Capacity (kW) | 76,00 | 86,00 | 128,00 | 138,00 | 75,30 | 85,07 | |||||||
| Input (kW) | 20,27 | 23,12 | 33,70 | 36,32 | 22,14 | 25,06 | ||||||||
| EER (W/W) | 3,75 | 3,72 | 3,80 | 3,80 | 3,40 | 3,39 | ||||||||
| SEER (W/W) | 5,00 | 5,00 | 4,80 | 4,80 | 4,92 | 4,85 | ||||||||
| Heating capacity (A7W65) | Capacity (kW) | 60,00 | 61,00 | 100,00 | 110,00 | 60,10 | 61,10 | |||||||
| Input (kW) | 26,10 | 26,75 | 42,90 | 50,00 | 26,24 | 26,89 | ||||||||
| COP (W/W) | 2,30 | 2,28 | 2,33 | 2,20 | 2,29 | 2,27 | ||||||||
| Heating capacity (A7W55) | Capacity (kW) | 64,00 | 66,00 | 106,00 | 126,00 | 64,15 | 66,15 | |||||||
| Input (kW) | 21,33 | 22,15 | 35,30 | 49,22 | 21,68 | 22,50 | ||||||||
| COP (W/W) | 3,00 | 2,98 | 3,00 | 2,56 | 2,96 | 2,94 | ||||||||
| Heating capacity (A7W45) | Capacity (kW) | 65,00 | 75,00 | 110,00 | 140,00 | 65,65 | 75,71 | |||||||
| Input (kW) | 18,30 | 22,06 | 29,90 | 44,73 | 19,43 | 23,51 | ||||||||
| COP (W/W) | 3,55 | 3,40 | 3,68 | 3,13 | 3,38 | 3,22 | ||||||||
| Heating capacity (A7W35) | Capacity (kW) | 64,00 | 77,00 | 112,00 | 142,00 | 64,65 | 77,70 | |||||||
| Input (kW) | 15,24 | 19,74 | 27,00 | 38,17 | 16,37 | 21,61 | ||||||||
| COP (W/W) | 4,20 | 3,90 | 4,15 | 3,72 | 3,95 | 3,59 | ||||||||
| SCOP (35) Medium climate (W/W) | 3,40 | 3,40 | 3,25 | 3,25 | 3,36 | 3,36 | ||||||||
| SCOP (55) Medium climate (W/W) | 4,50 | 4,50 | 4,25 | 4,25 | 4,47 | 4,47 | ||||||||
| Temperature Limit Range for Operation |
|
|||||||||||||
