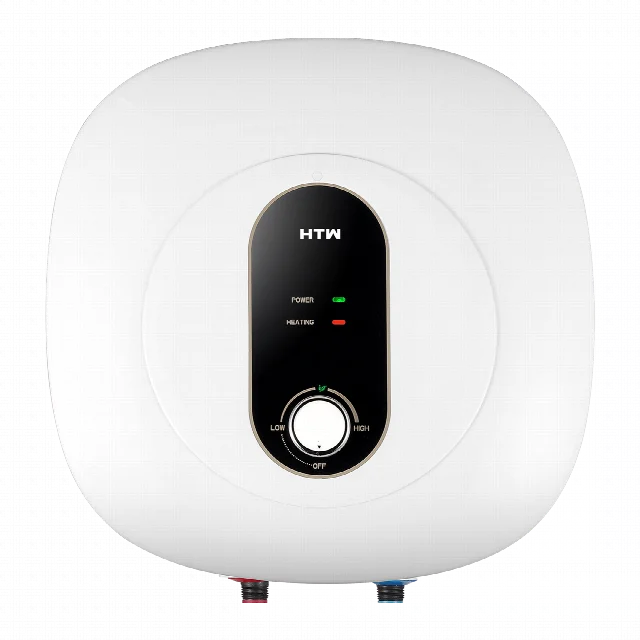

THERMOS FLASK ESSENTIAL
Discover the perfect combination of functionality and design with the new Essential compact electric water heater.

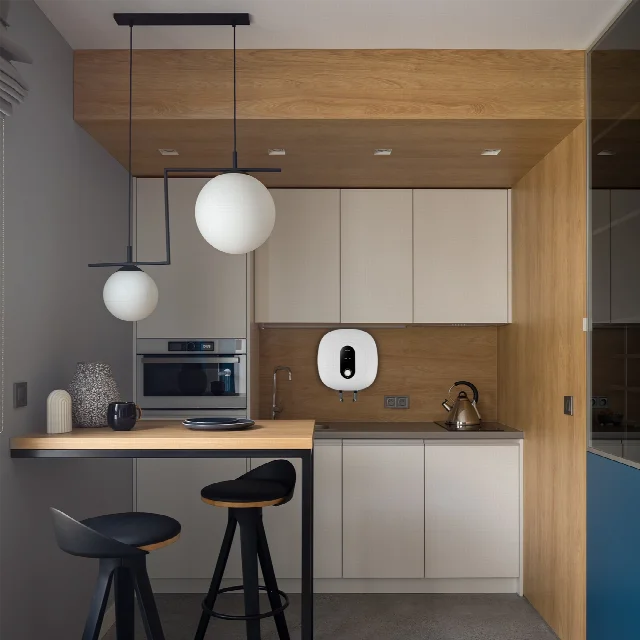

Thanks to its over-sink installation, this model optimizes space and fits easily into any environment.
Main features:
-
Installation: Vertical wall mounting
-
Control: Mechanical
-
Thermostat: Capillary
-
Heating element: SUS316L stainless steel
-
Power: 1500W
-
Enameling: Dry process for durability
-
Insulation: 20mm layer for thermal efficiency
Available capacities: 15L
| MODELS | HTW-TV-15ESS | HTW-TV-30ESS | HTW-TV-50ESS | HTW-TV-80ESS | HTW-TV-100ESS |
|---|---|---|---|---|---|
| EAN CODE | 8435483835801 | 8435483800571 | 8435483800564 | 8435483800557 | 8435483800540 |
| Power supply V,P,HZ | 220?240V (1 Phase ~ 50Hz) | ||||
| Power W | 1.500 | ||||
| Current A | 6,5 | ||||
| Declared Profile | S | S | M | M | L |
| Energy classification | B | B | C | C | C |
| Capacity L | 15 | 30 | 50 | 80 | 100 |
| Maximun working pressure Mpa | 0,75 | ||||
| Operating temperature ºC | 30~75 | ||||
| Recovery time 15-40ºC | 13 min | 26 min | 1 h 5 min | 1 h 35 min | 1 h 56 min |
| Insulation thickness mm | 20 | ||||
| Material thickness mm | 1,6 | 1,8 | 1,8 | 2,0 | 2,0 |
| Coating type | Electrostatic powder | Enameled Sapphire Coating | |||
| Degree of protection | IPX4 | ||||
| Anode Type | Magnesium | ||||
| Anode Size mm | 20x120 | 20x200 | |||
| Resistance | 316L stainless steel | Incoloy 840 | |||
| Installation type | Vertical | ||||
| Water inlet tube | G1/2? | ||||
| Recommended number of people | 1 | 1 | 1 | 2 | 3 |
| Net dimensions (ØxH) mm | 380×380×325 | Ø340x618 | Ø380x735 | Ø450x808 | Ø450x963 |
| Gross dimensions (LxAxD) mm | 440×430×380 | 405x665x385 | 445x785x425 | 505x855x495 | 515x1010x505 |
| Gross / net weight Kg | 8,7/10,4 | 13,6/15,9 | 17,5/19,8 | 23,7/26,7 | 26,9/30,9 |
